Team -
Linkerd version - edge-25.4.1
AKS Cluster
- Created namespace linkerd
- Installed linkerd CRDs from the helm chart [kept the default values]
- Installed Linkerd from the helm chart [kept the default values] with in the namespace linkerd
- Created namespace linkerd-viz
- Installed linkerd-viz from helm chart [kept the default values] with in the namespace linkerd-viz
All pods are in the running state.
Installed and configured the Nginx Ingress contoller.
Installed the Ingress resource, so that Linkerd-viz dashboard can be accessed through Ingress, instead of port-forwarding.
We are able to access Linkerd-viz dashboard from ingress as well.
Now, from here the issue starts -
On the Linked-viz dashboard, when we click on Namespaces (in the left pane), we get a list of Namespaces on the right pane.
If we click on the linkerd namespace for example, we get a list of Deployements, pods etc.

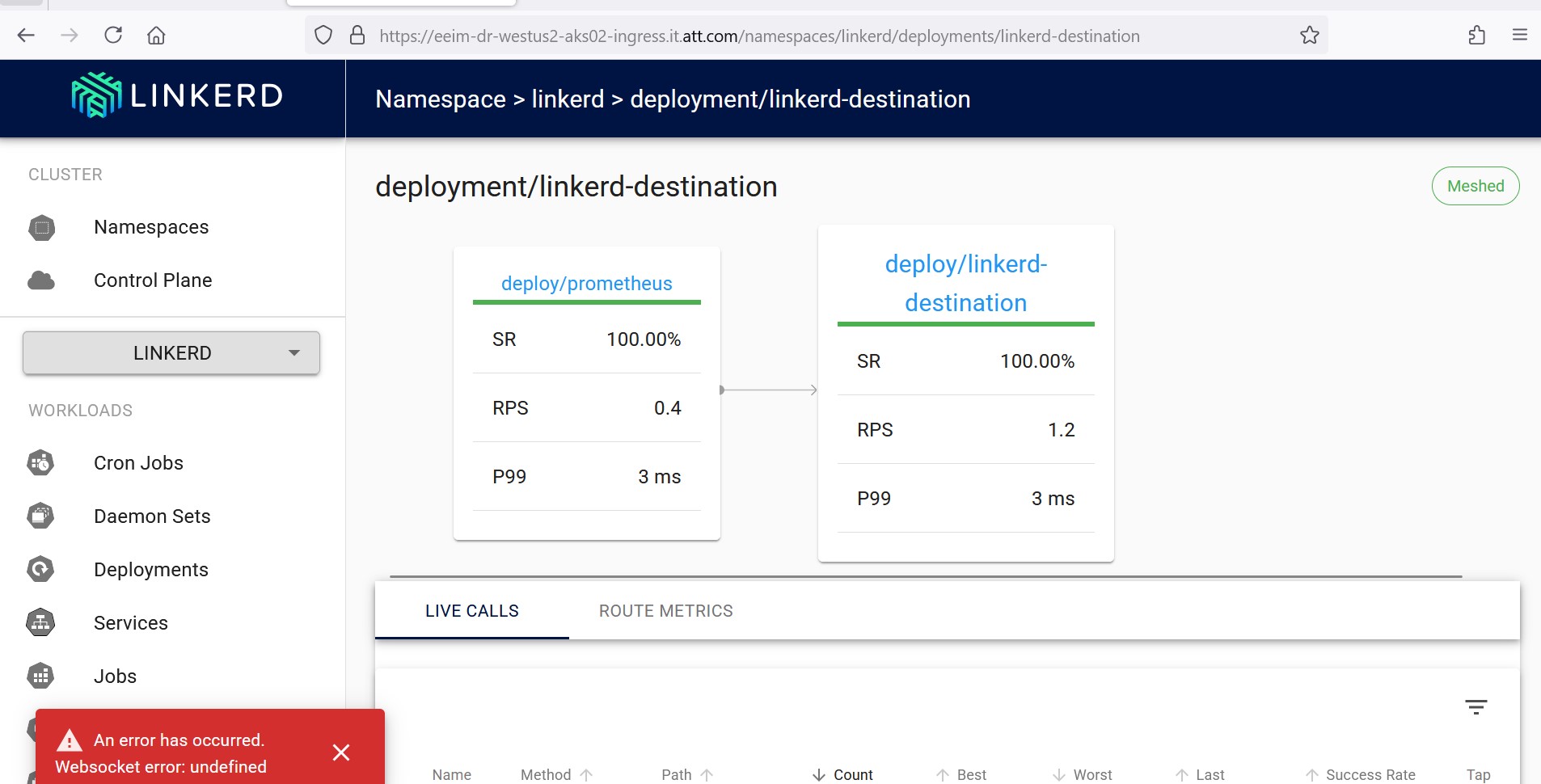

With in the Deployements, if we click the sub-links “linkerd-destination” for example, we are getting error message,
An error has occurred. Websocket error: undefined, because of that we are unable to see any live calls.
This is happening for all the sublinks when we are accesing the ,linkerd-viz dashboard through ingress.
Everything work perfectly fine, when we access the dashboard through the direct connection (ie port forwarding → http://localhost:8084)
wss://mydomain.com/api/tap’ failed:
we see above error, when we perform from the dashboard , right-click → inspect → Console
Attached the error screen shot and the ingress resource yaml file for you reference.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/auth-realm: Authentication Required
nginx.ingress.kubernetes.io/auth-secret: web-ingress-auth
nginx.ingress.kubernetes.io/auth-type: basic
nginx.ingress.kubernetes.io/backend-protocol: HTTP
nginx.ingress.kubernetes.io/connection-proxy-error: keep-alive
nginx.ingress.kubernetes.io/connection-proxy-header: keep-alive
nginx.ingress.kubernetes.io/enable-websocket: 'true'
nginx.ingress.kubernetes.io/proxy-buffering: 'off'
nginx.ingress.kubernetes.io/proxy-connect-timeout: '6000'
nginx.ingress.kubernetes.io/proxy-http-version: '1.1'
nginx.ingress.kubernetes.io/proxy-read-timeout: '6000'
nginx.ingress.kubernetes.io/proxy-send-timeout: '6000'
nginx.ingress.kubernetes.io/proxy-websocket: 'true'
nginx.ingress.kubernetes.io/proxy_set_header.Connection: Upgrade
nginx.ingress.kubernetes.io/proxy_set_header.Upgrade: websocket
nginx.ingress.kubernetes.io/rewrite-target: /
nginx.ingress.kubernetes.io/server-snippets: |
location / {
proxy_set_header Upgrade $http_upgrade;
proxy_http_version 1.1;
proxy_set_header X-Forwarded-Host $http_host;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-For $remote_addr;
proxy_set_header Host $host;
proxy_set_header Connection "Upgrade";
proxy_cache_bypass $http_upgrade;
proxy_pass http://web:8084;
proxy_set_header Upgrade websocket;
}
nginx.ingress.kubernetes.io/upstream-vhost: web.linkerd-viz.svc.cluster.local:8084
nginx.ingress.kubernetes.io/use-forwarded-headers: 'true'
nginx.ingress.kubernetes.io/websocket-services: web
nginx.org/websocket-services: web
name: web-ingress
namespace: linkerd-viz
spec:
ingressClassName: nginx
rules:
- host: mydomain.com
http:
paths:
- backend:
service:
name: web
port:
number: 8084
path: /
pathType: Prefix
tls:
- hosts:
- mydomain.com
secretName: aks-ingress-tls
Please suggest.
